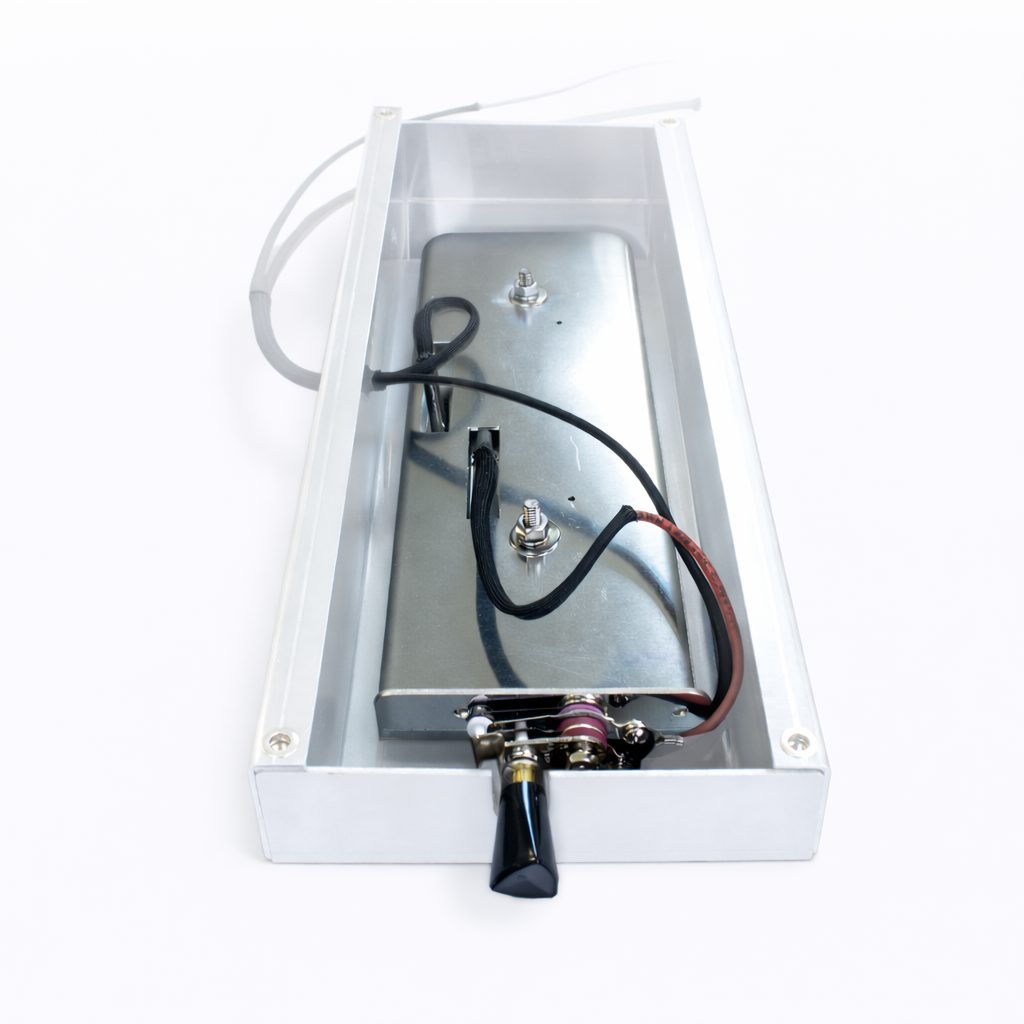

B-250 Thermostat Conversion Kit (6″ x 15″ & 8″ x 15″ Seal Plates)
The B-250 Thermostat Conversion kit fits most 600A, 625A 102A, 104A, and SM 1 wrappers. If you do not understand which thermostat is currently in the unit requiring repair, the easiest remedy is to purchase the B250 Conversion Kit. This kit is engineered to fit both 6 X 15 and 8 X 15 seal plate formats. If the wrapper was manufactured prior to 2022, the B250 Conversion kit is required to install and use the B250 thermostat. If the wrapper was manufactured in 2022 and after, it should already be fitted to use the B250 thermostat.
Fitting Information:
| Unit Type | Style | Serial Number Format | Replacement Part Needed | Replacement Part Needed |
| 600A | Table Top Wrapper | 2501J0001 | If the first and second digits together are 22 or larger, use the B250 thermostat kit | If the first and second digits together are 21 or smaller, use the Retainer Kit or the B200 kit |
| 625A | Table Top Wrapper | GG25120001 | If the third and fourth digits together are 22 or larger, use the B250 thermostat kit | If the third and fourth digits together are 21 or smaller, use the Retainer Kit or the B200 kit |
| 102A | Floor Wrapper | AA123025-01 | If the seventh and eighth digits together are 22 or larger, use the B250 thermostat kit | If the seventh and eighth digits together are 21 or smaller, use the Retainer Kit or the B200 kit |
| 104A | Floor Wrapper | II123025-01 | If the seventh and eighth digits together are 22 or larger, use the B250 thermostat kit | If the seventh and eighth digits together are 21 or smaller, use the Retainer Kit or the B200 kit |
| SM1 | ScaleMate | XX123025-01 | If the seventh and eighth digits together are 22 or larger, use the B250 thermostat kit | If the seventh and eighth digits together are 21 or smaller, use the Retainer Kit or the B200 kit |
If you have any questions please contact us, or call (216) 341-2022

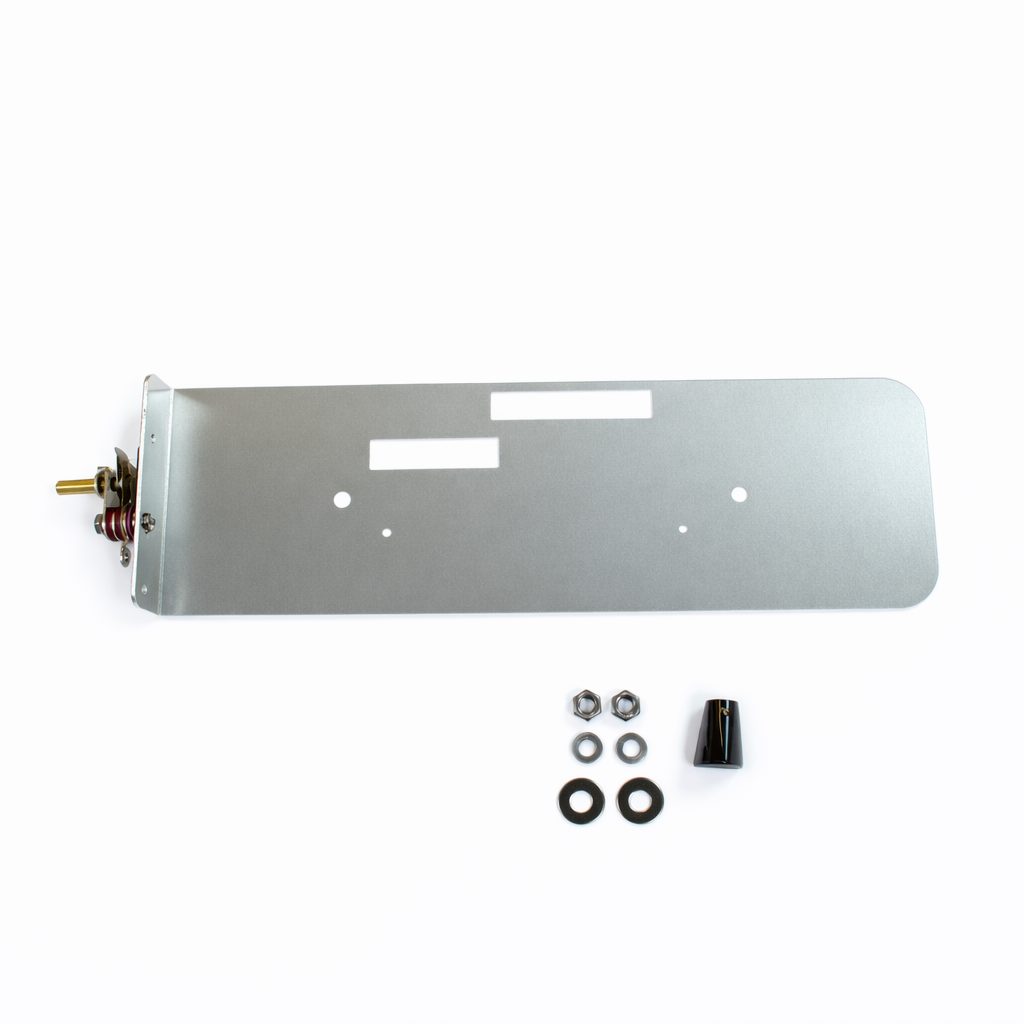

Includes:

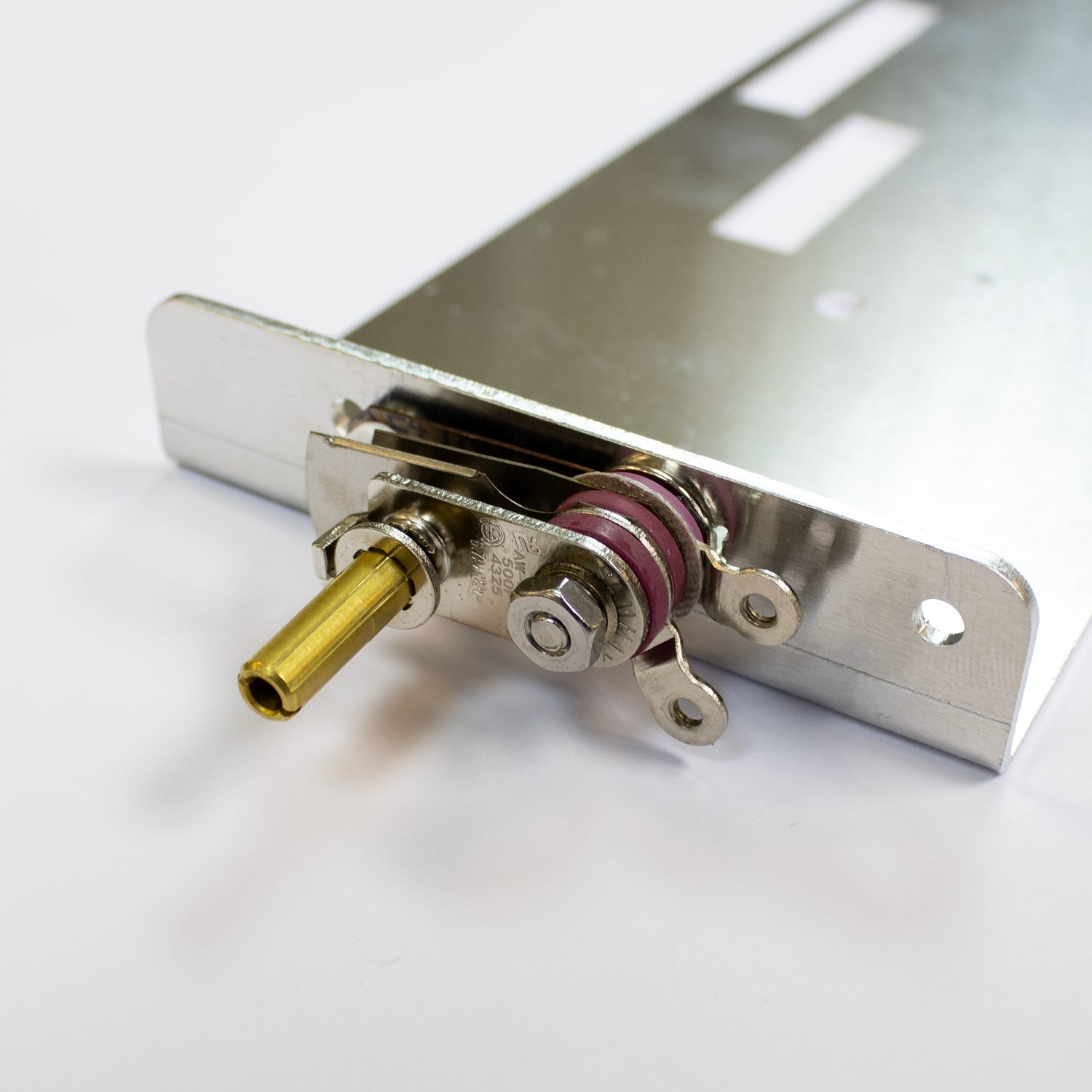

B250 Thermostat
Thermostat Knob
Aluminum Conversion Plate

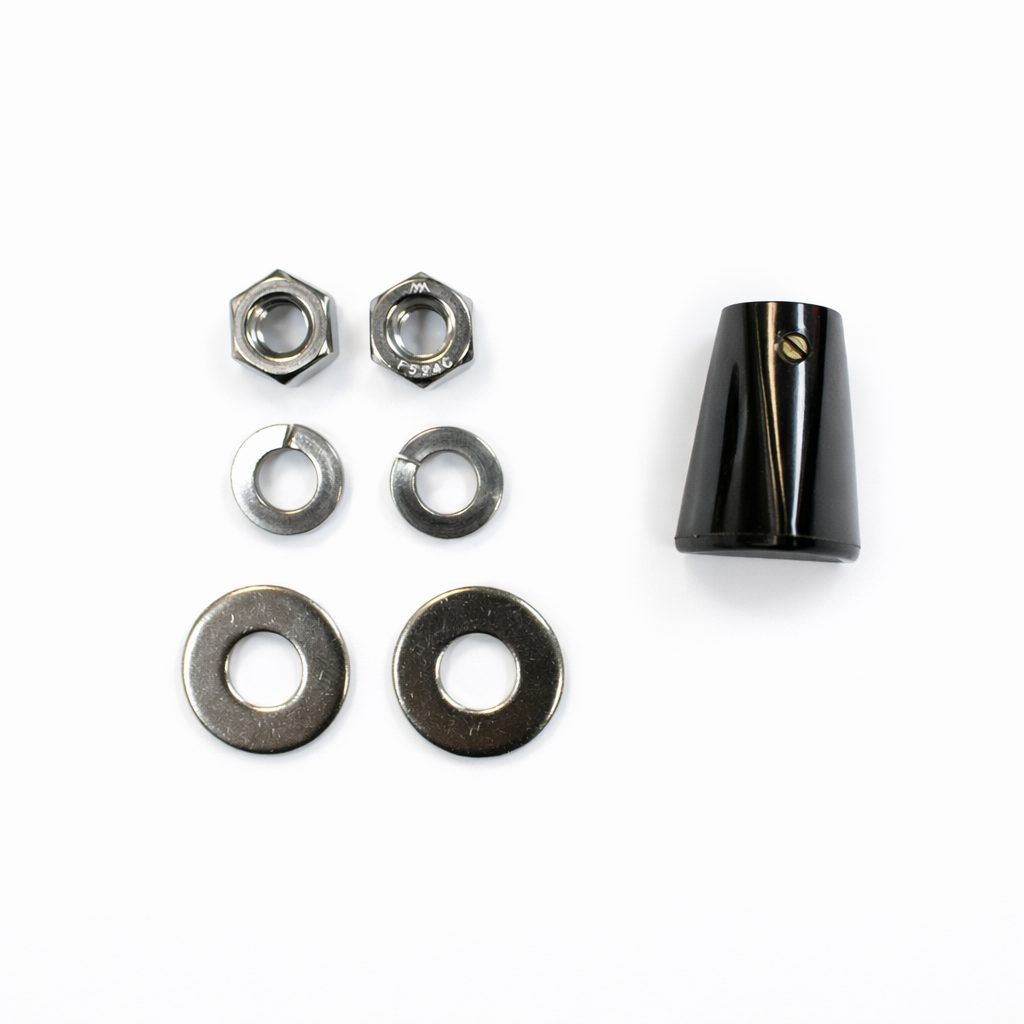

All Mounting Hardware
